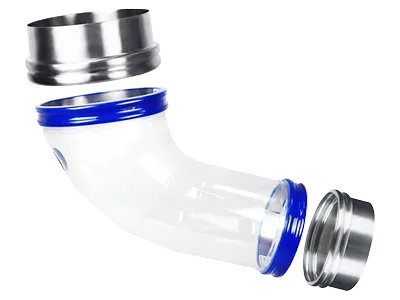

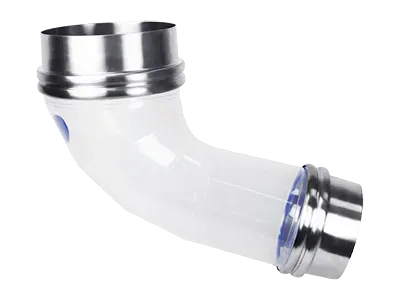

BFM® Corner Connector 040E

Description:

A unique corner connector made of clear ether-based thermoplastic polyurethane alloy connector with a 110° bend to aid the transportation of CIP fluid flowing through your process.

Documents and Resources:

For in-depth information on the features and installation of the Corner Connector 040E, refer to our detailed documents and resources.

Our Corner Connector 040E is made from a clear ether-based thermoplastic polyurethane alloy with a tapered infeed end, 110º angled bend and straight drain output end.


It is designed to redirect the clean-in-place (CIP) wash fluid flowing through your process ensuring that your equipment stays dry and your product is free from chemicals used to clean your process machinery.


Application

  • CIP (clean-in-place) wash processes to replace traditional steel tun-dish and swiveling pipework.
  • Designed for applications where product/material needs to be transported around a bend.
  • Ideal for under compact machinery (i.e. sifter/sieve) where product needs to be redirected into other equipment where there is limited space.

Description title

  • Available with SS Rings? (min. length for all is 150mm) No
  • Available with Plastic Rings? (min. length for all is 150mm) No
  • Available as Tool Release? Yes to ≤ Ø650mm - wide end, ≤ Ø600mm narrow end
  • Available as Tapered? Yes
  • Available as a one ended Connnector? Yes
  • Quick Access Port Option? No

  • Can be used in applications where product needs to be transported around a bend
  • Replaces steel tun-dish and swiveling pipework

  • Vibration
  • Dust Tight
  • Food Safety
  • ATEX
