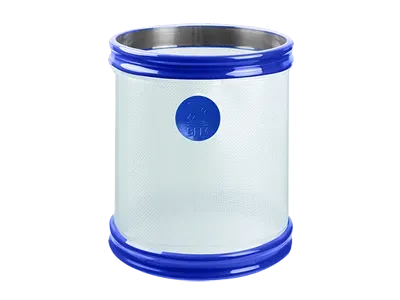

The Seeflex 060ES Connector is specifically designed for high-pressure applications, capable of withstanding continuous pressure up to 1.7 bar. It is made from a clear, ether-based thermoplastic polyurethane alloy with an internally bonded polyester scrim, which restricts the connector from stretching and provides superior pressure resistance. This makes it ideal for use in overpressure situations such as pneumatic conveying systems and other industrial processes where pressure containment is critical.

The internally bonded polyester scrim within the Seeflex 060ES adds significant structural strength, preventing the material from elongating under pressure. This feature is crucial for maintaining the integrity and functionality of the connector in high-pressure environments, ensuring that it does not deform or burst under operational stress. Additionally, this reinforcement allows the connector to handle higher temperatures and pressures without compromising its durability or performance.

The Seeflex 060ES Connector has a wall thickness of 1.3mm and is semi-transparent. It operates effectively within a temperature range of -25 to 120°C, with a surge temperature capacity of up to 140°C. The maximum operating pressure is 1.7 bar for connectors used at temperatures up to 90°C. It is important to note that short connectors (less than 600mm) may not withstand oscillation due to their length, while longer connectors can accommodate such movements without compromising their structural integrity.

This connector is FDA and USDA approved, ensuring it is safe for use in food and pharmaceutical processing environments. It is also 3A certified, meeting stringent hygienic standards required for sanitary applications. Furthermore, it is EU approved and Atex Certified, suitable for use in dust explosion hazardous areas with some restrictions. These certifications confirm that the Seeflex 060ES Connector meets high safety and quality standards, making it a reliable choice for critical and demanding industrial applications.
