Description:

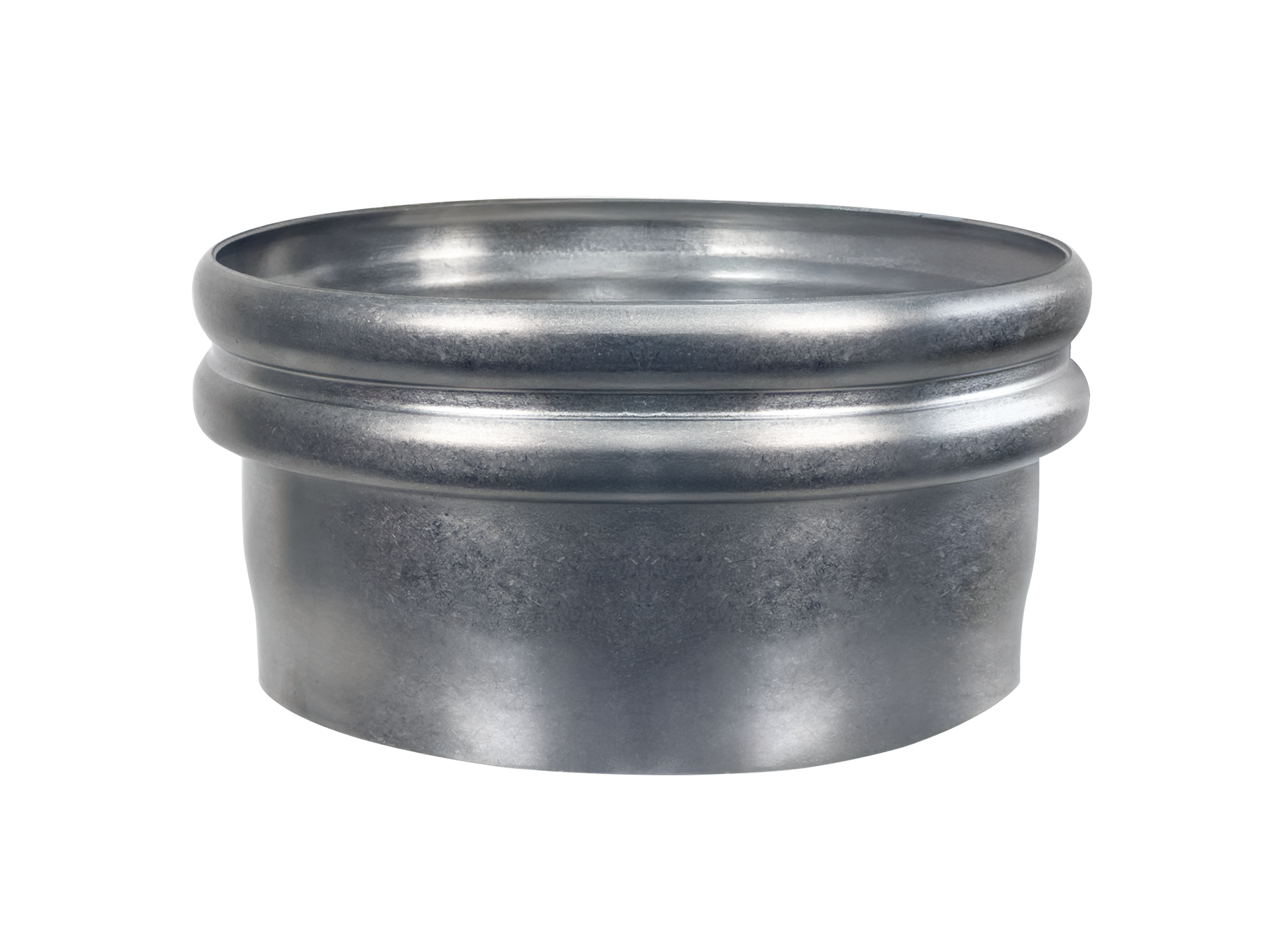

Standard BFM® Spigots are stainless steel fittings welded to pipework or equipment to create a secure mounting point for BFM® flexible connectors.

Documents and Resources:

For in-depth information on the features and installation of standard BFM®, refer to our detailed documents and resources.

Standard BFM® spigots provide the fixed stainless steel connection point required to mount BFM® flexible connectors to process equipment and pipework. Designed with precise dimensions and a slightly tapered tail, they ensure a secure fit and simplify welding to existing piping systems while maintaining hygienic internal surfaces.


Applications

  • Bulk powder and dry ingredient transfer systems
  • Food and beverage processing equipment
  • Pharmaceutical and nutraceutical production lines
  • Chemical and industrial material handling systems
  • Connections between hoppers, sifters, mixers, and conveyors

  • Material Selection – Available in Stainless Steel T316L, T304L, or C22 Hastelloy for corrosive environments
  • Diameter Sizes – Manufactured in sizes from Ø100 mm up to Ø1650 mm
  • Tail Length Adjustment – Tail can be cut or angled to suit existing pipework during installation
  • Tool Release (TR) Option – 6 mm hole can be added to accommodate BFM® Tool Release connectors
  • Flange or Pipe Integration – Can be welded to a variety of pipework configurations or equipment outlets
  • Static Dissipation Setup – Compatible with static dissipative wire connections for powder handling applications

  • Manufactured from Stainless Steel T316L or T304L, with C22 Hastelloy available in select sizes
  • Precision dimensions ensure a perfect fit with BFM® flexible connectors
  • Interior surface finish ≤ 0.8 Ra micrometers (32Ra micro-inches) for hygienic applications
  • Standard 2.0 mm wall thickness
  • Slightly tapered tail design allows easier welding to existing pipework
  • Available in diameters from Ø100 mm to Ø1650 mm

  • Hygienic Design
  • Food Processing Compatibility
  • Pharmaceutical & Nutraceutical Applications
  • Corrosion Resistance
  • Static Control Compatibility
  • Precision Fit with BFM® Connectors

Need Help with Installation?

Just fill in your email address to download a digital copy of the BFM Installation Guidebook.

Contact Us

Start Your Custom Project With Us Today

Embark on a journey to innovate and excel with our tailor-made industrial solutions. Connect with our experts now to elevate your operations with customized, precision-engineered products.

Contact Us

Frequently Asked Questions

  • What is a BFM® spigot used for?

    A BFM® spigot provides the fixed stainless steel mounting point required to attach BFM® flexible connectors to pipework or processing equipment.

  • How are standard BFM® spigots installed?

    Standard spigots are typically welded directly to pipework or equipment, creating a permanent and secure connection point for the flexible connector.

  • What materials are standard BFM® spigots available in?

    They are available in stainless steel T316L or T304L, with C22 Hastelloy available in select sizes for more corrosive environments.

  • What sizes are available for standard BFM® spigots?

    Standard BFM® spigots are available in diameters ranging from Ø100 mm to Ø1650 mm, allowing them to be used in a wide range of bulk material handling systems.
