Venting Surge Hopper Spigot

Contact Us
FM1 Breather

Description:

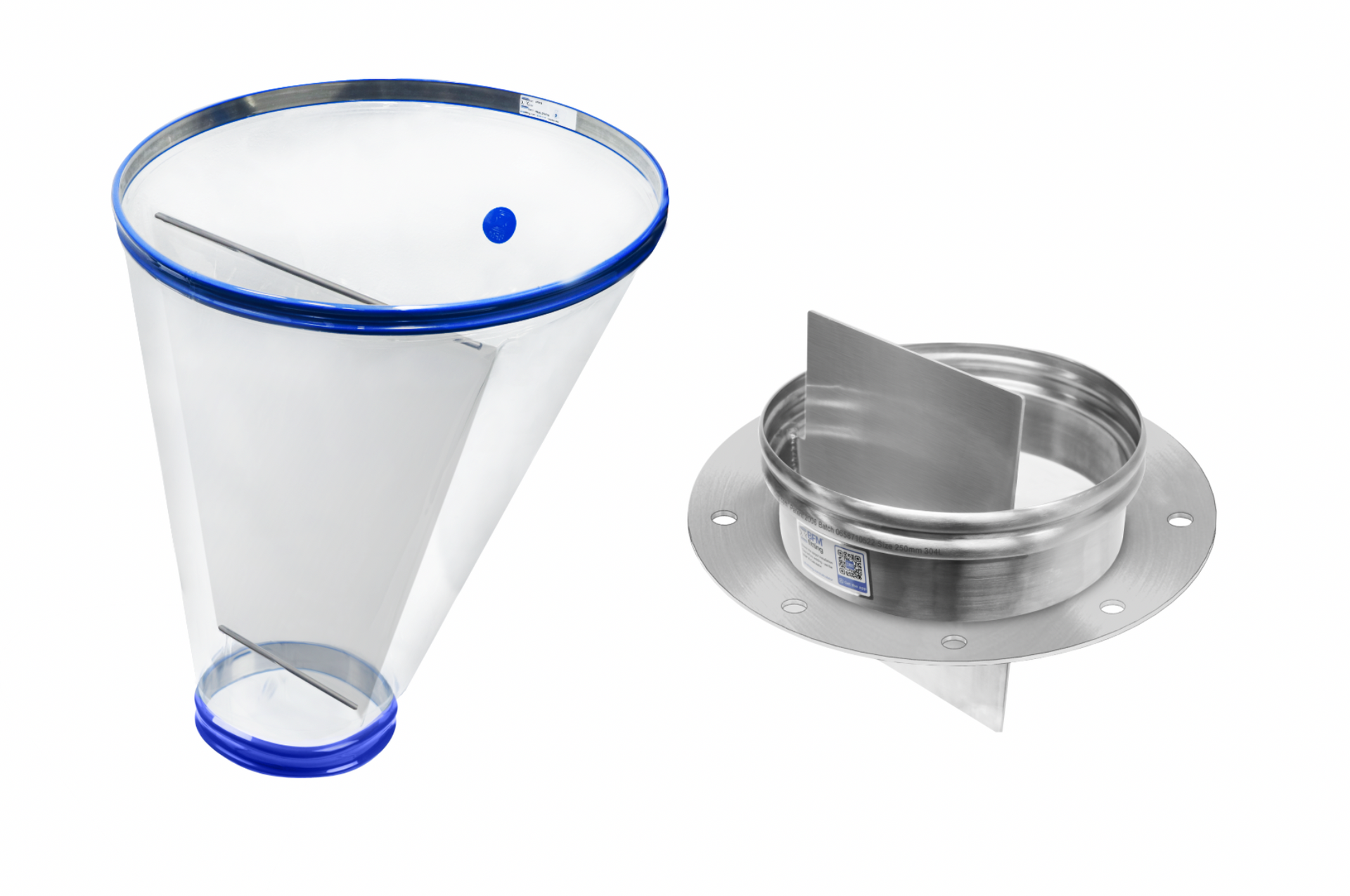

The Venting Surge Hopper Spigot is a specialized spigot designed for use with BFM® Venting Surge Hopper Connectors to improve airflow and product discharge in hopper systems.

Documents and Resources:

For in-depth information on the features and installation of BFM® venting surge hopper spigots, refer to our detailed documents and resources.

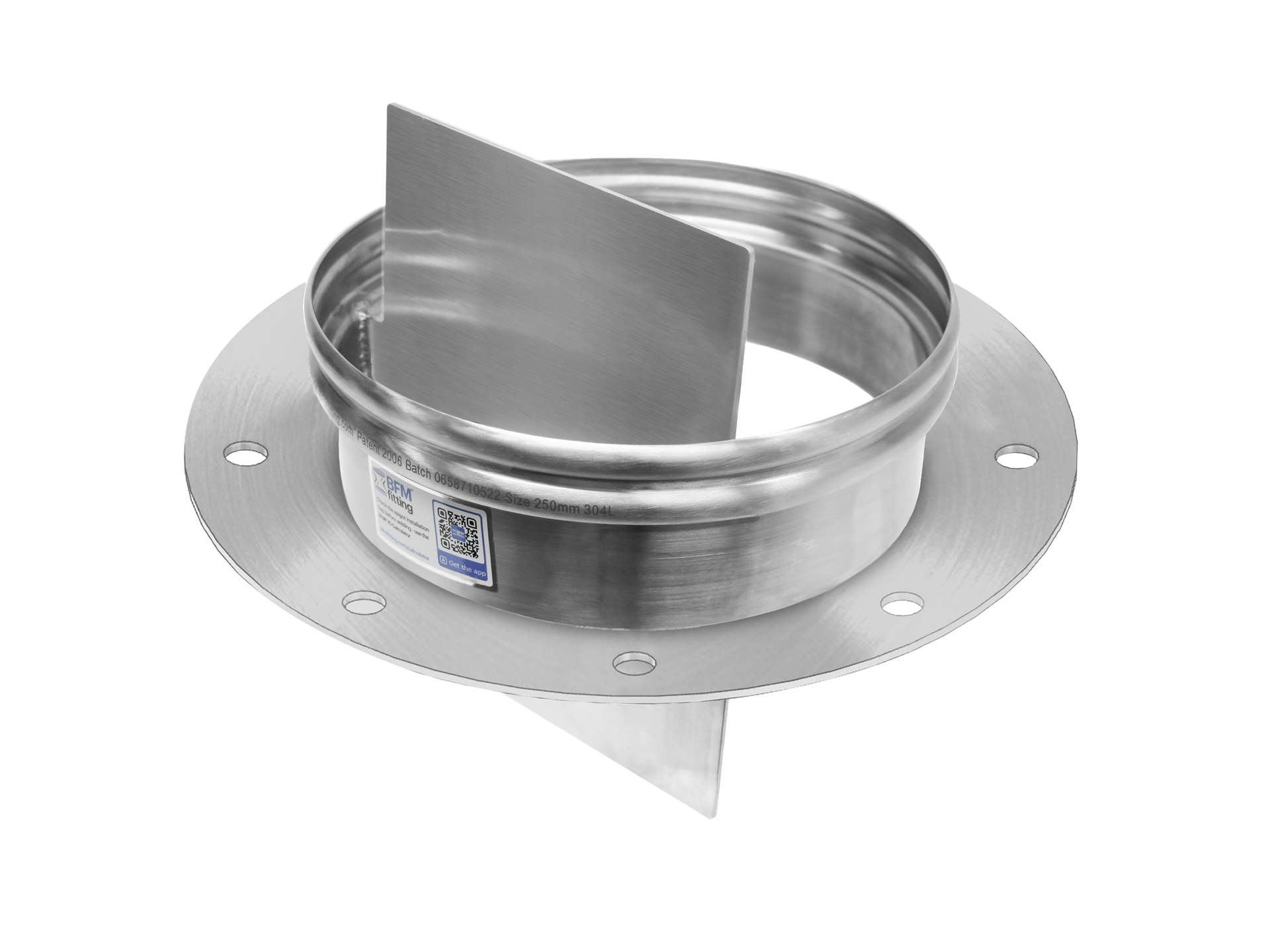

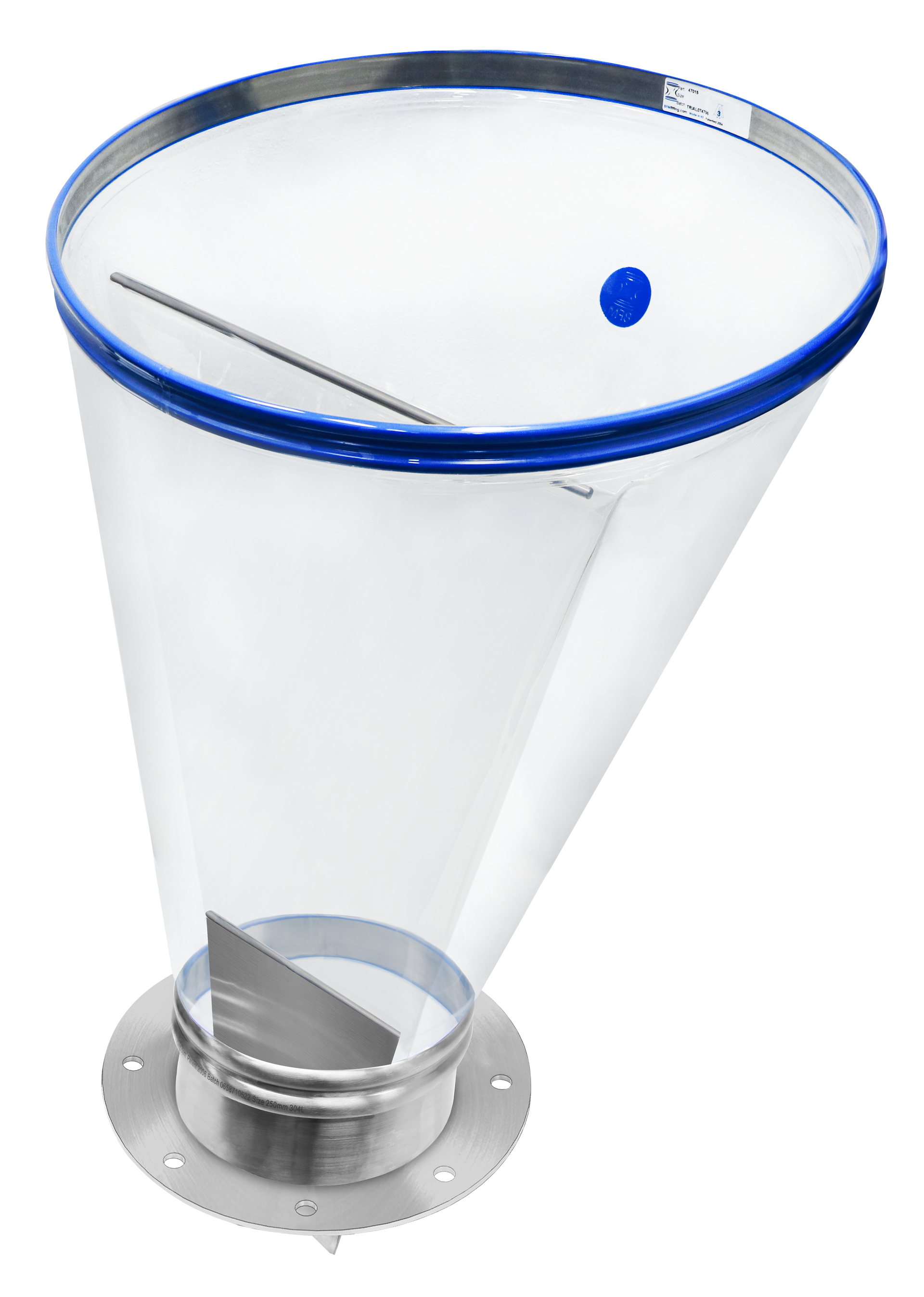

The Venting Surge Hopper Spigot is engineered for applications where controlled venting and product flow are critical. It features an internally welded angled weir plate that helps manage airflow and material discharge within surge hopper systems. Designed for installation above rotary valves, this spigot improves discharge efficiency while providing a secure mounting point for BFM® Venting Surge Hopper Connectors.


Applications

  • Surge hopper discharge systems
  • Rotary valve feed systems
  • Powder and bulk material handling processe
  • Food and ingredient processing equipment
  • Pharmaceutical and chemical processing systems

Description title

  • Material Selection – Available in Stainless Steel T316L or T304L
  • Flange Configuration – Custom DIN or ANSI flange standards
  • Diameter Sizes – Available in Ø200 mm, Ø250 mm, Ø300 mm, and Ø350 mm
  • Weir Plate Adjustment – Lower edge can be trimmed during installation to fit rotary valve clearances

  • Stainless steel construction (T316L or T304L)
  • Custom outer flange to suit DIN or ANSI standards
  • Integrated 3 mm angled weir plate
  • Weir plate installed at a 6° angle to match surge hopper partition design
  • Designed for installation above rotary valves to optimize discharge efficiency
  • Available in diameters 200 mm to 350 mm

  • Hygienic Design
  • Food Processing Compatibilit
  • Pharmaceutical & Nutraceutical Applications
  • Corrosion Resistance
  • Precision Fit with BFM® Connectors

Need Help with Installation?

Just fill in your email address to download a digital copy of the BFM Installation Guidebook.

Contact Us

Start Your Custom Project With Us Today

Embark on a journey to innovate and excel with our tailor-made industrial solutions. Connect with our experts now to elevate your operations with customized, precision-engineered products.

Contact Us

Frequently Asked Questions

  • What is a Venting Surge Hopper Spigot used for?

    It is designed to support BFM® Venting Surge Hopper Connectors and improve airflow and material discharge in surge hopper applications.

  • What is the purpose of the weir plate?

    The internal angled weir plate helps control airflow and guide product flow to improve discharge efficiency.

  • Where are Venting Surge Hopper Spigots typically installed?

    They are commonly installed above rotary valves in surge hopper discharge systems.

  • What sizes are available for Venting Surge Hopper Spigots?

    These spigots are available in Ø200 mm, Ø250 mm, Ø300 mm, and Ø350 mm.
