Static Conductive Channel Hose

Contact Us
A silver rolled-up sleeping bag or inflatable mat with a yellow stripe on a black background
Button

Description:

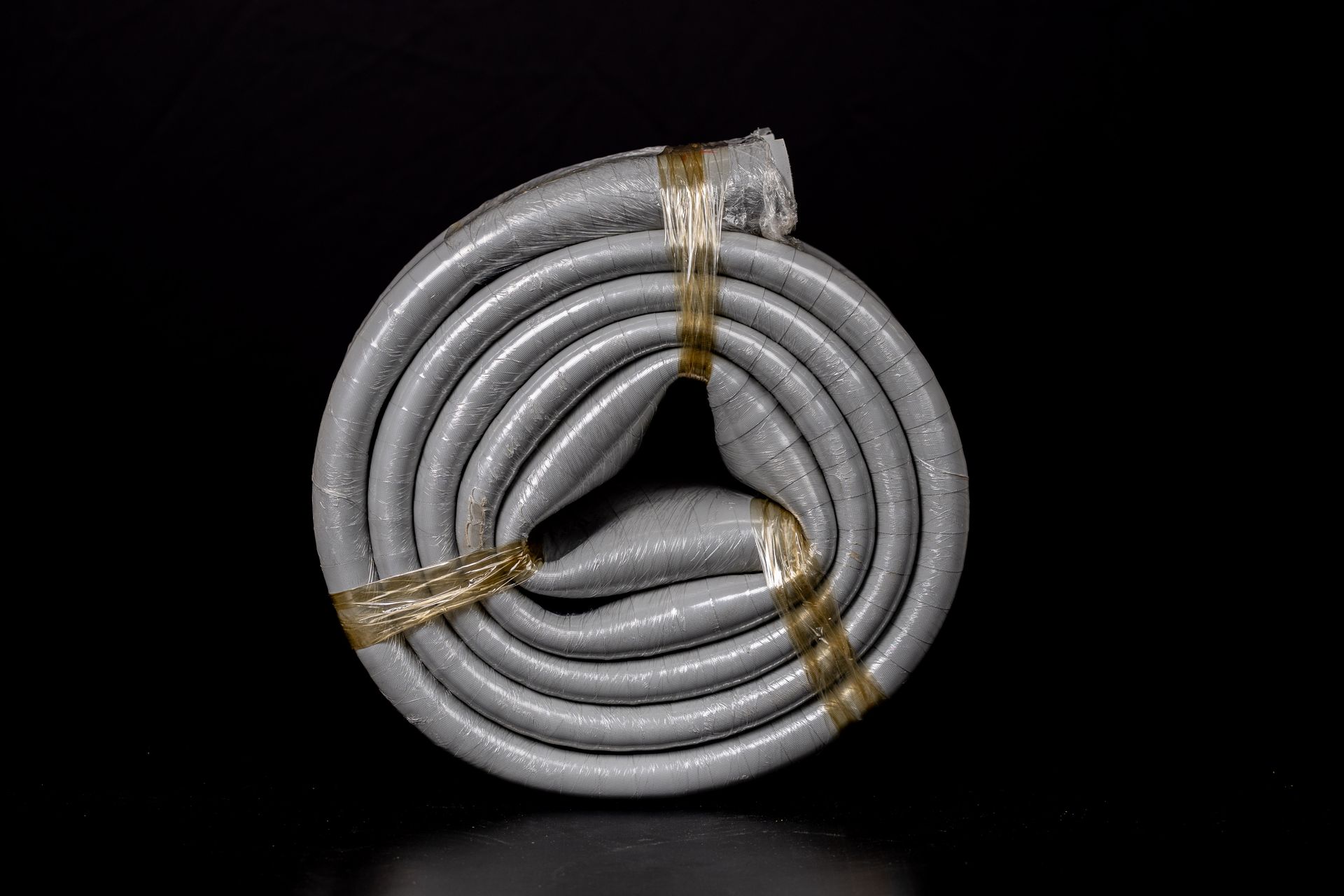

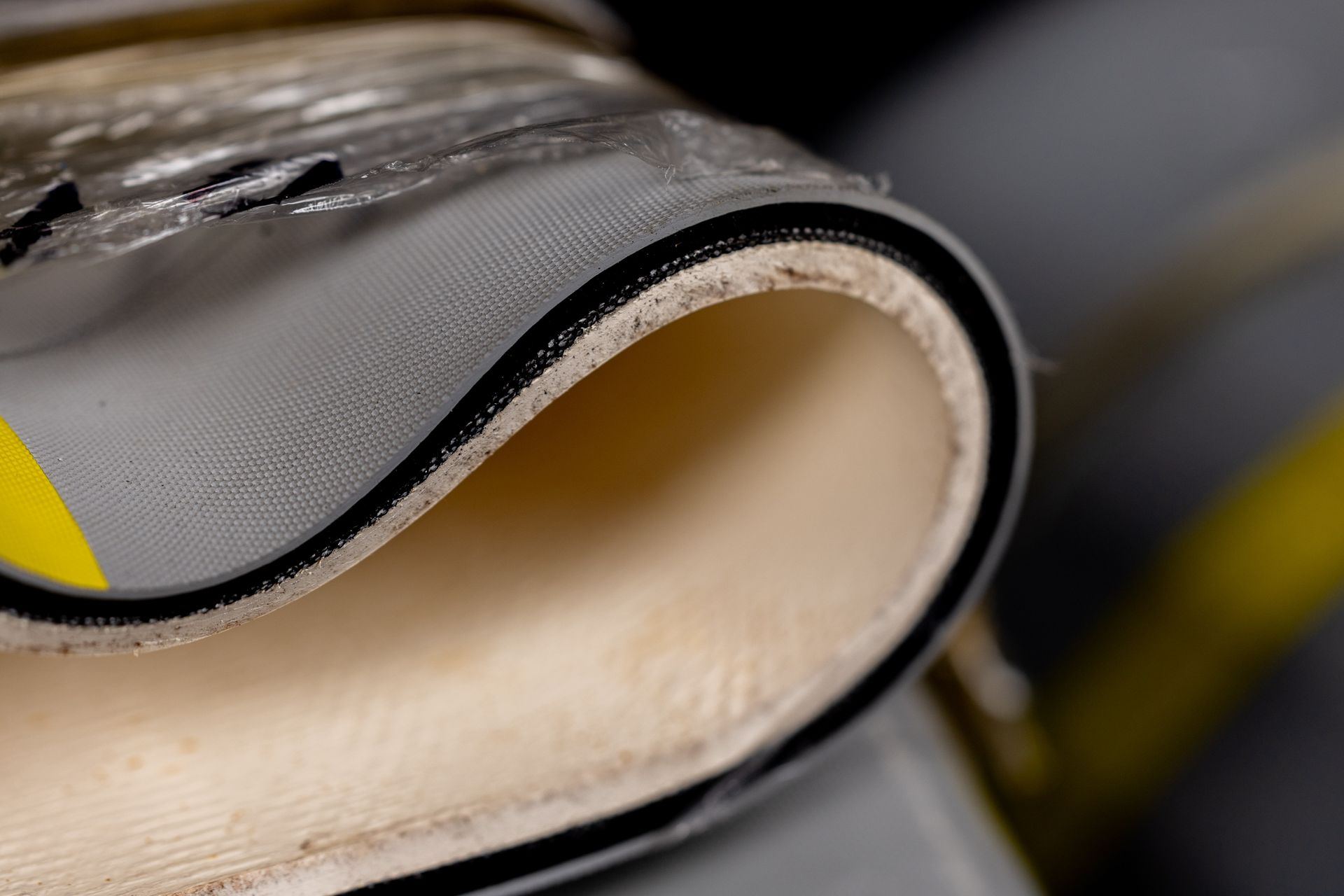

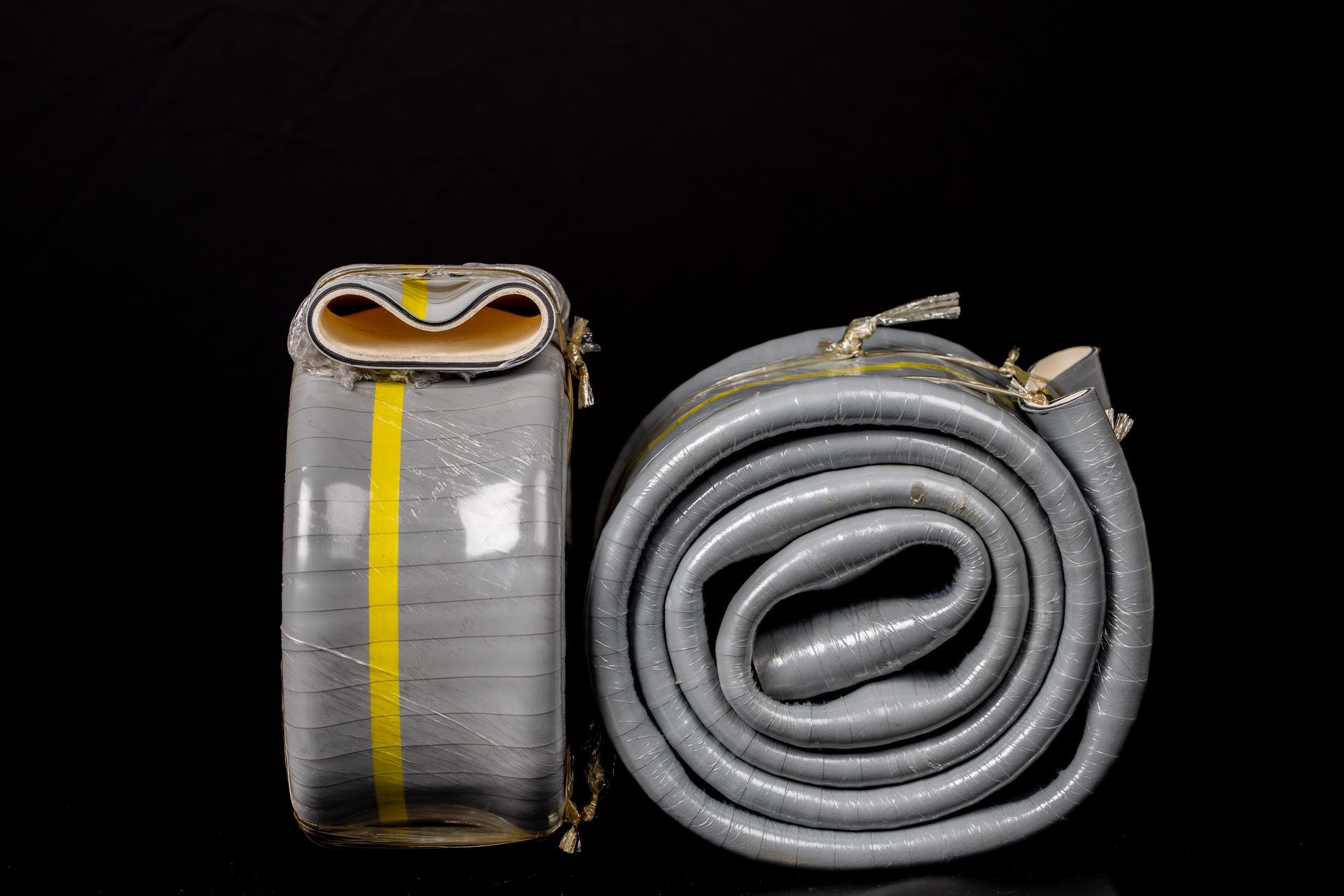

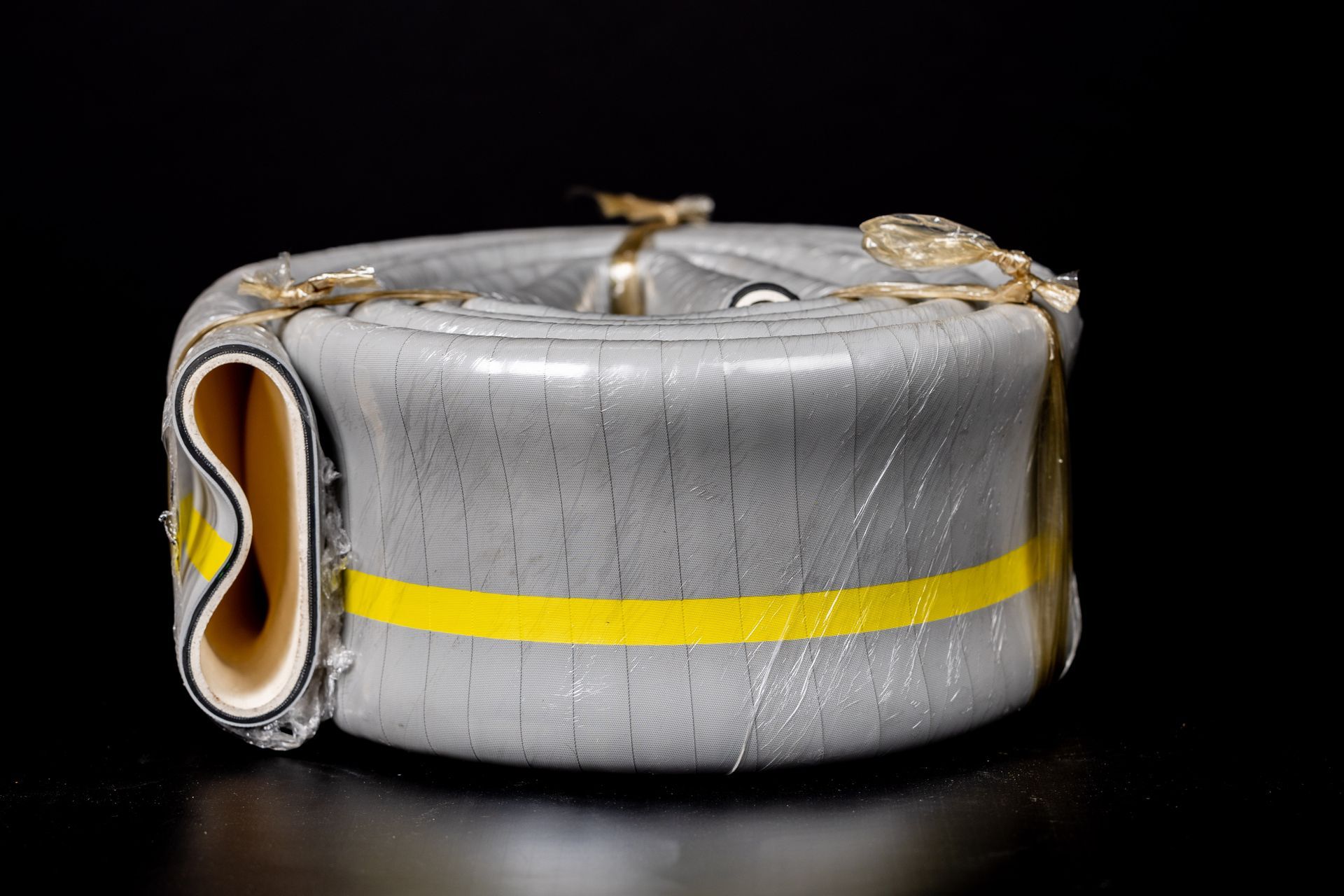

Static conductive channel hose by Siftex is designed to control static charges effectively in industrial settings without risking wire contamination. Available in both pressure-rated and non-pressure-rated options, this tubing features a unique static conductive layer, making it ideal for applications where static control is crucial.

Green “Same-Day Shipping” badge with “On Stock Items” label

Documents and Resources:

  • Static Control: Offers surface resistance of <.01 megOhms, efficiently controlling static charges.
  • Design Variants: Available in two designs: a 25 PSI pressure-rated version for high-pressure applications and a lighter weight non-pressure rated version.
  • Safe and Efficient: Eliminates the risk of wire contamination in your products, ensuring both safety and product integrity.
  • Durability: Crafted to withstand industrial use, maintaining performance and reliability over time.

  • Custom Specifications: Tailor the construction and rubber compound of your tubing to meet your process requirements.
  • Stock Color: Gray
  • Stock Sizing (5/16" thickness): 4",  6", and 8"
  • Additional Sizing: Standard ID Range: Available from 1" up to 24" ID. Specialty/Intermediate Sizes: We also support non-standard dimensions, including 8 5/8" and 12 3/4" ID.
  • Additional Thickness: Because all orders are custom-manufactured to spec, we can accommodate virtually any required wall thickness. Most Common Thicknesses: 1/8", 3/16", and 1/4". Custom Specifications: Non-standard thicknesses can be manufactured upon request to meet your exact application needs.

  • Standard Length Per Roll:
  • Up to 3" ID: 50'
  • 3" to 8" ID: 24'
  • Over 12" ID: 12'

  • Minimum Quantity: Depending on the customization and manufacturing process, there may be a minimum quantity requirement. Contact our Customer Service for more details.

ISO, EX, BPA Free, FDA, and food-safe icons in gray on a light background.
Assorted spools and rolls of thread or film in white, blue, and clear with silver caps

Start Your Custom Project With Us Today

Embark on a journey to innovate and excel with our tailor-made industrial solutions. Connect with our experts now to elevate your operations with customized, precision-engineered products.

Contact Us
Rows of blue and orange dots forming a circular pattern on a white background

Frequently Asked Questions

  • What is the purpose of static conductive channel hose?

    This hose is designed to safely control static electricity in industrial applications, crucial for environments where static charges can affect product integrity or safety.

  • What are the available designs for the static conductive channel hose?

    It comes in two designs: a 25 PSI pressure-rated variant for high-pressure applications and a lighter, non-pressure rated version for more general purposes.

  • What makes the static conductive channel hose unique in controlling static?

    The hose features a unique static conductive layer with surface resistance of <.01 megOhms, offering superior static control without the risk of wire contamination.

  • Are there minimum order requirements for custom orders?

    Custom orders may be subject to minimum quantity requirements due to the manufacturing process. Please consult our Customer Service for detailed information.

View FAQ
