Description:

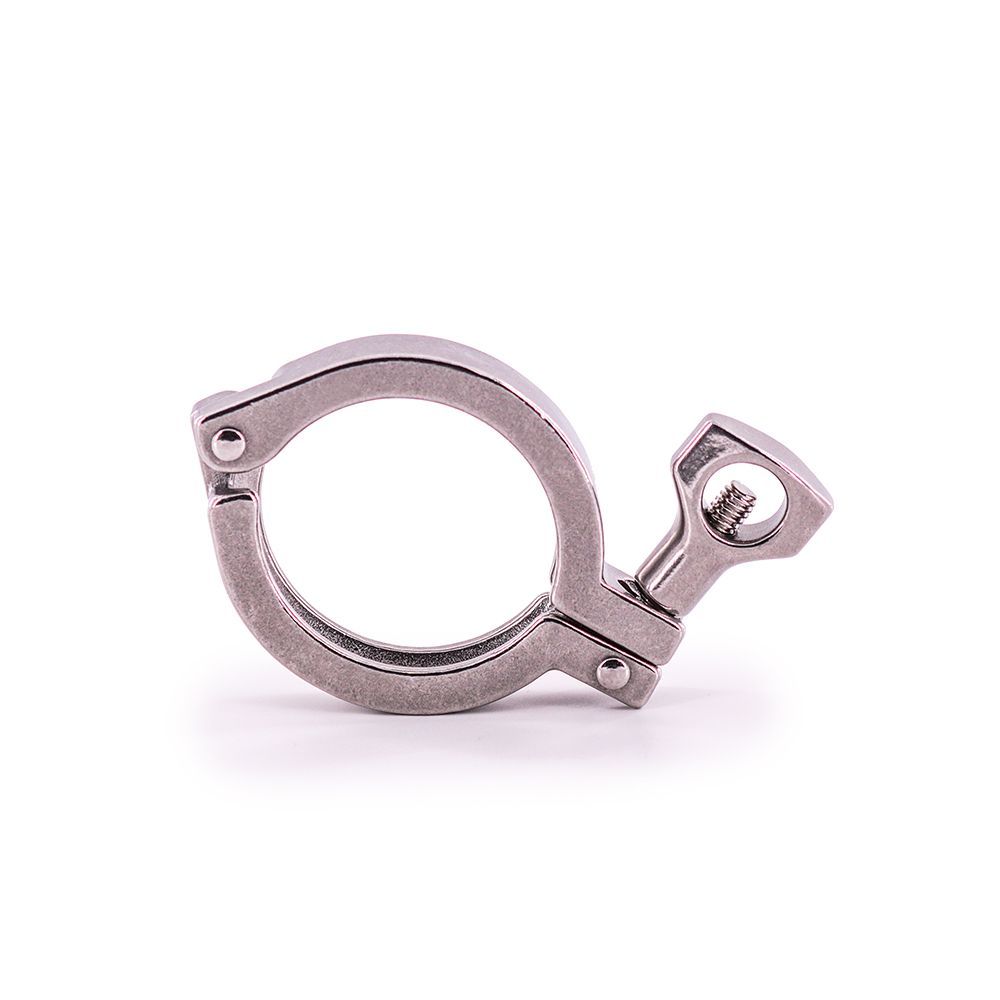

Siftex offers high-performance stainless steel Tri-Clamp solutions designed for secure, sanitary connections in processing systems. Our Single Pin Heavy Duty Tri-Clamp is constructed from durable T304 stainless steel, with 316L available upon request for enhanced corrosion resistance. Engineered to reliably connect two Tri-Clamp flange ends, these clamps deliver dependable sealing.

Learn more:

Reach out to Siftex today to discover more about our Tri-Clamp Connectors and find the perfect fit for your machinery's needs.

  • Available in  4", 5", 6", 8", 10", 12"
  • Constructed from durable T304 stainless steel for corrosion resistance and strength
  • 316L stainless steel option available upon request for enhanced chemical compatibility
  • Designed to securely connect two Tri-Clamp flange ends
  • Suitable for sanitary processing systems in food, beverage, pharmaceutical, and chemical industries
  • Pressure-rated when nut is tightened to 25 ft/lbs of torque
  • Quick-release design for easy assembly and disassembly
  • Ideal for standard pressure applications

Start Your Custom Project With Us Today

Embark on a journey to innovate and excel with our tailor-made industrial solutions. Connect with our experts now to elevate your operations with customized, precision-engineered products.

Contact Us

Frequently Asked Questions

  • What is the recommended torque for securing the clamps?

    To achieve proper sealing performance, the nut should be tightened to 25 ft/lbs of torque.

  • Can these clamps be used in sanitary or hygienic applications?

    Yes. The clamps are designed to meet sanitary processing standards and are widely used in food, beverage, pharmaceutical, and biotech systems.

  • Do I need to use a gasket with these clamps?

    Yes. A Tri-Clamp gasket should be placed between the flange ends to ensure a tight, leak-proof seal. Siftex offers a variety of gasket materials to suit different process conditions.
